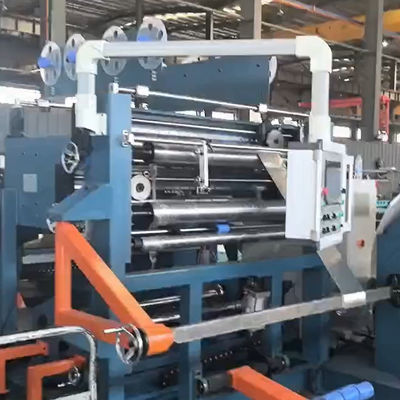

Automatic Copper Foil Winding Machine Making Dry Type Transformer

Automatic Copper Foil Winding Machine Making Dry Type Transformer

Description of transformer foil winding machine BRJ1200-2

Transformer foil winding machine is a special conductive foil winder equipment. The transformer foil winding machine can handle both copper foil and aluminium foil to make foil coils. These finished foil coils can be used in dry type transformers and other similar products. With two foil decolers and two insulation decoilers, the transformer foil winding machine can handle one or two layers of foil and one or two layers of insulation paper at one time. With PLC and HMI, the transformer foil winding machine can be operated easily. The transformer foil winding machine features slow starting, smooth running, big torque, high automation and so on.

Main components of transformer foil winding machine BRJ1200-2

1. Main frame

2. Winding unit

3. Foil decoiler

4. Insulation decoiler

5. End-fill strip feeder

6. Cleaning system

7. Cutting system

8. Foil deburring system

9. Edge alignment system

10. Automatic welding unit

11. Electronic control system

12. Pneumatic system

Technical parameters of transformer foil winding machine BRJ1200-2

Typical standard specifications of transformer foil winding machine BRJ1200-2 are shown below and the transformer foil winding machine can also be manufactured as requested.

FIG 1: Transfomer foil winding machine's side view

Fig 2: Transformer foil winding machine BRJ1200-2's back view
